Trimmer head JTH 07 - Red Mountain Light

---

RM07-JTH07

RED MOUNTAIN®

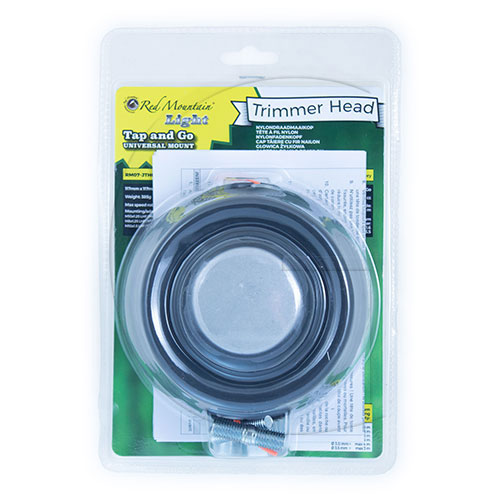

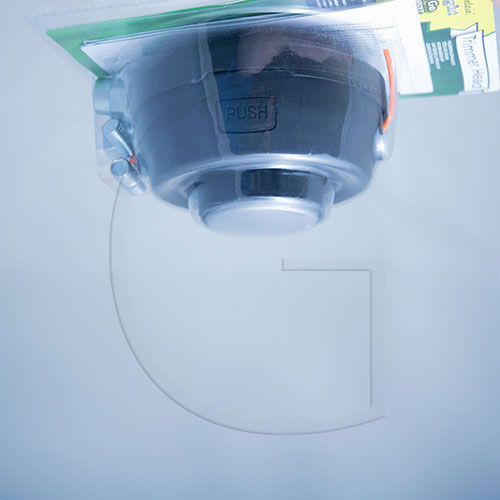

Red Mountain Light trimmer head JTH 07 - Tap and Go - universal mount

Suitable for all brushcutters/trimmers, petrol or battery.
Size: 117mm x 78mm
Reloading system: Tap and Go
Weight: 385g
Suggested for engines max. 37 cc
Max speed rotation/minute: 10.000 RPM

Comes with a nylon line inside:
round type, size: Ø 2,4 mm x 2,5 m

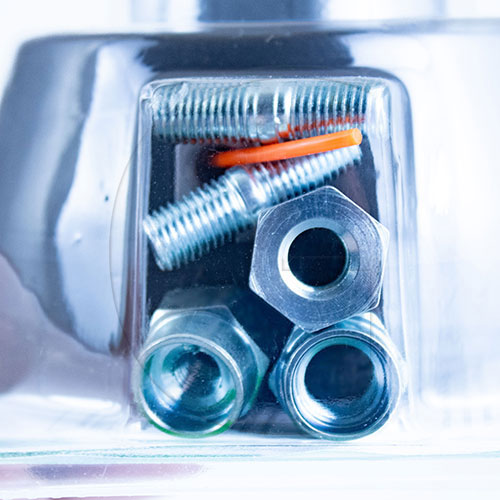

Mounting adaptors:

• M10x1,25 LH F | M8x1,25 LH M
• M8x1,25 LH F | M10x1,25 LH M
• M10x1,5 LH F | M12x1,75 LH F

Maximum loading capacity:

• Ø 1,6 mm = max 10 m
• Ø 2,0 mm = max 8 m
• Ø 2,4 mm = max 6 m
• Ø 2,7 mm = max 5 m
• Ø 3,0 mm = max 4 m
• Ø 3,5 mm = max 3 m

Minimum and maximum nylon line diameter:
smallest Ø 1,6 mm - biggest Ø 3,5 mm

Suitable: for almost all brush cutter models

Ø: 117 mm
Min./Max. Ø nylon line: ≤ 3,5 mm
Ø nylon line: 2,4 mm
Spool capacity: ≤ 10 m
L nylon line: 2,5 m
Adaptor Type: M10x1,25 LH F | M8x1,25 LH M, M8x1,25 LH F | M10x1,25 LH M, M10x1,5 LH F | M12x1,75 LH F
